3D MODEL EXPORT (.stl, .step, .dwg) for 3D printing.
$5.81 USD
$11.61 USD $5.81 USD
Sale Sold out
DEFAULT SIZE:
525mm ✖ 525 mm
NUMBER OF BLOCKS:
117
MATERIAL ESTIMATES:
N/A

Description

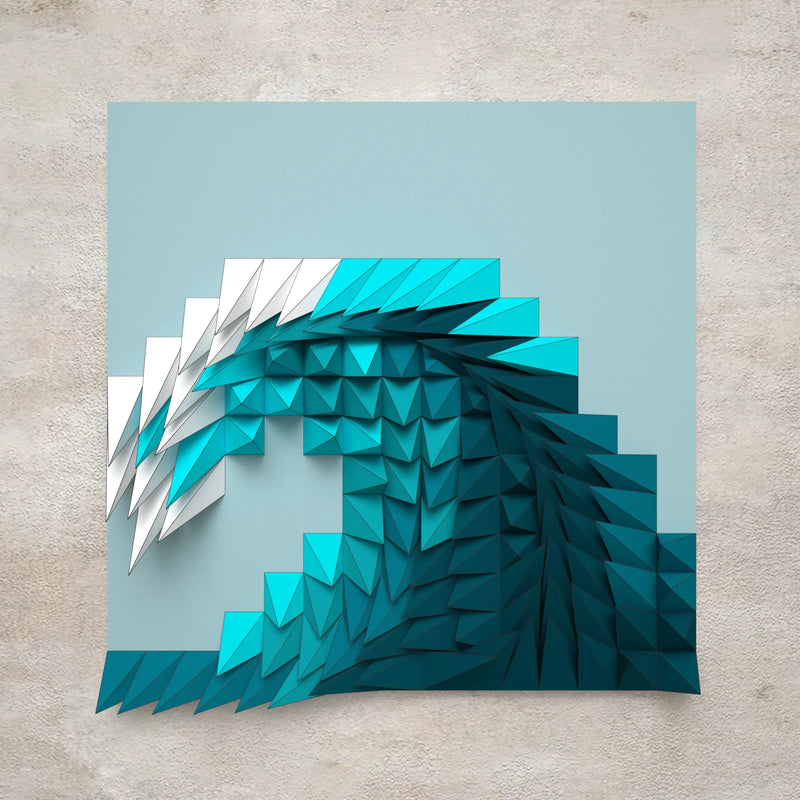

Plunging Wave captures the dramatic curl of a breaking ocean wave in sharp pyramid blocks, rising and curving like water caught mid-crash.

A compact design with just 117 blocks, the grid doesn't stretch edge to edge — so we recommend painting the backboard in a complementary colour, like a light sky blue, to frame the wave against an open backdrop.

Details:

  • 3D model export
  • 117 blocks
  • Backboard visible around the design — painting it is recommended
  • Includes STL, STP and DWG files for 3D printing

Shipping

This is a digital template. No product will be shipped physically. Your files will be available to download once payment is confirmed.

Digital Product Notice
This is a digital product. By completing your purchase you confirm that you agree to immediate delivery of the digital content and acknowledge that you waive your EU right of withdrawal once the download has been provided.

While digital products cannot be returned or refunded, if you experience any issue with your files we will do our best to resolve it and find a solution that works for you. Just reach out to us at: info [at] paragami [dot] com

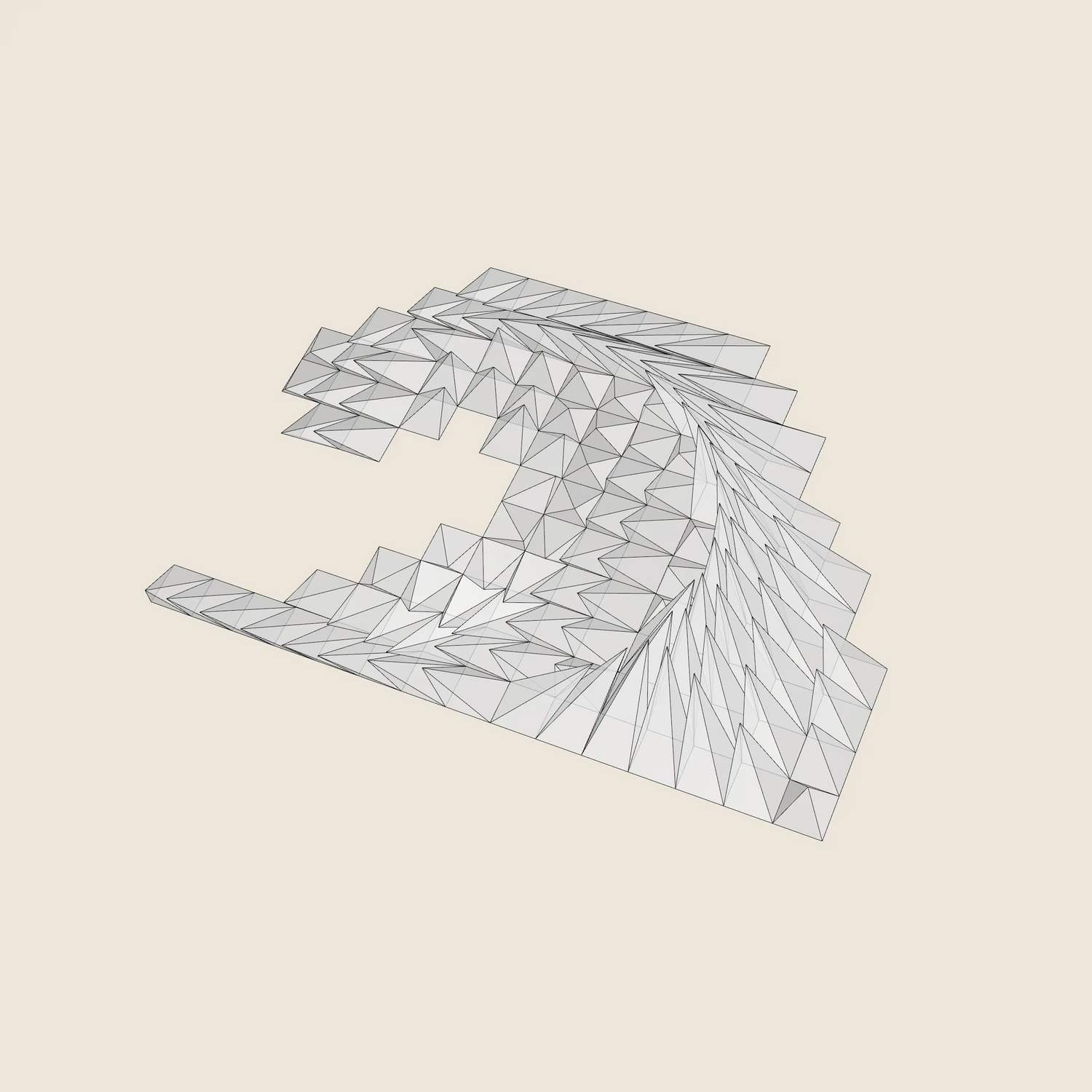

Note:This 3D preview uses a simplified model to ensure a smooth experience.

Your Custom Palette

3D printed geometric wall art — Paragami

WHAT YOU WILL GET

3D MODEL

• STL - File format for 3D PRINTING (mesh geometry)
• DWG & STP - 3D model CAD export (NURBs geometry)

FILES EXPORTED AS: Whole model (Numbered & Plan); Grouped by Colours (Numbered & Plan); Individual blocks (Numbered & Plan). Block and Colour number is in writen in the filename.

PDF LAYOUT

• Layout grid with block numbers and colours

───────────────
INSTANT DOWNLOAD:
Files available for download after payment confirmation. Access the link on the checkout page or via email. Digital items are non-returnable, non-exchangeable, and non-cancelable. No physical product will be shipped.

SEE WHAT IS INSIDE THE DOWNLOAD PACKAGE ➜

  • CURRENT DESIGN DOWNLOAD PACKAGE CHANGELOG:

    To be added...

  • HELPFUL NOTES AND TIPS FOR THIS TEMPLATE:

    To be added...

THIS IS A 3D MODEL EXPORT

Slicing settings depend on the model, especially its blocks/pyramids. For steep pyramids with gradual angles, increase perimeters or maintain shell thickness. Rotate blocks and enable supports. Settings vary by printer condition. For post-processing, use higher layers for faster printing and cover notches with colored spray.
To get started, we recommend this PRINTING SETTINGS:
• Layer height: 0,2 - 0,3 mm
• Perimeters: 2-3
• Infill: 5% (Rectilinear)
• Bottom Solid Layers: 2
• Top Solid Layers: 3
• Additional Setting: Use extra perimeters if needed, ensure minimum shell thickness, and detect thin walls (test as results vary by printer and slicer). Print external perimeters first. Adjust extrusion width to modify perimeter count in thin walls.

HOW TO 3D PRINTING - Tips & Tricks ➜
3D PRINTING TROUBLESHOOTING ➜

GET FILAMENT COLOUR BUNDLES

Unsure where to find matching filaments? Discover our Filament Colour Bundles, tailored to Paragami colour palettes!

EXPLORE INSPIRING FILAMENT COLOUR BUNDLES ➜

LAYOUT GRID

The layout grid PDF is included in the package.
It determines where each block belongs. Orientation by numbers is straightforward.

  • "34" is Up
  • "ᔭƐ" is Down

Additionally, each cell contains a colour number for the respective block.

Learn how to print the layout full scale with your home printer.

MAKERS' GALLERY

Customer image

made by: @yakbal03

  • APPLY FOR A 30% DISCOUNT
    ON YOUR NEXT DIGITAL TEMPLATE

    Once you finish your wall art, let us know! Allow us to share photos of your piece on social media and get a 30% discount on your next digital template purchase!

    LET US KNOW➜

  • COPYRIGHT NOTICE

    All Paragami designs on this website are proprietary and protected under intellectual property laws.
    They are exclusively intended for personal use. Any unauthorized sharing or distribution of digital files is prohibited.

    Commercial use requires a license. To use Paragami for commercial purposes, join:
    ParagamiPRO MEMBERSHIP ➜
